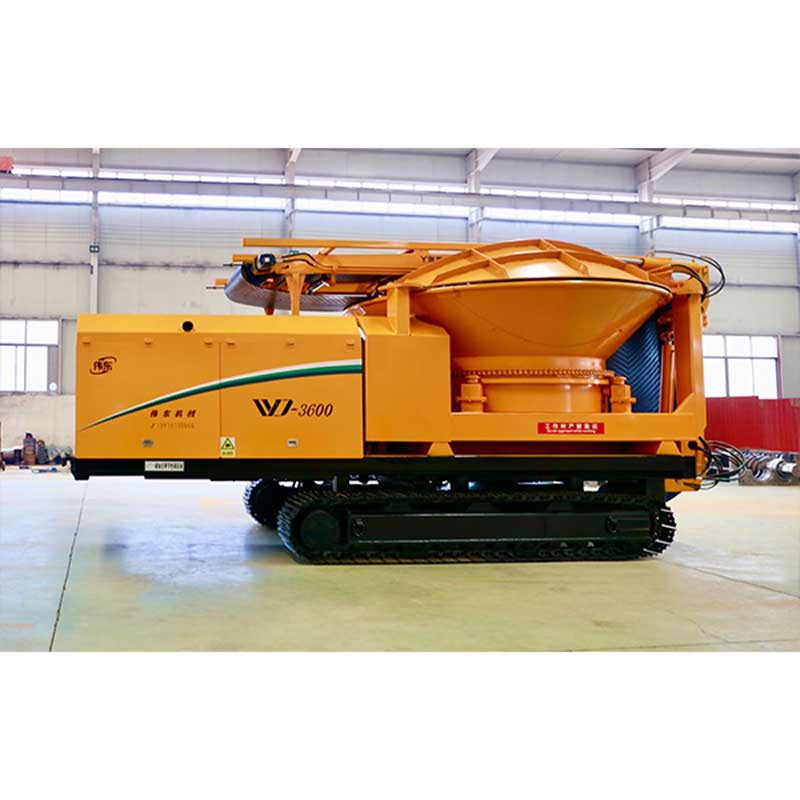

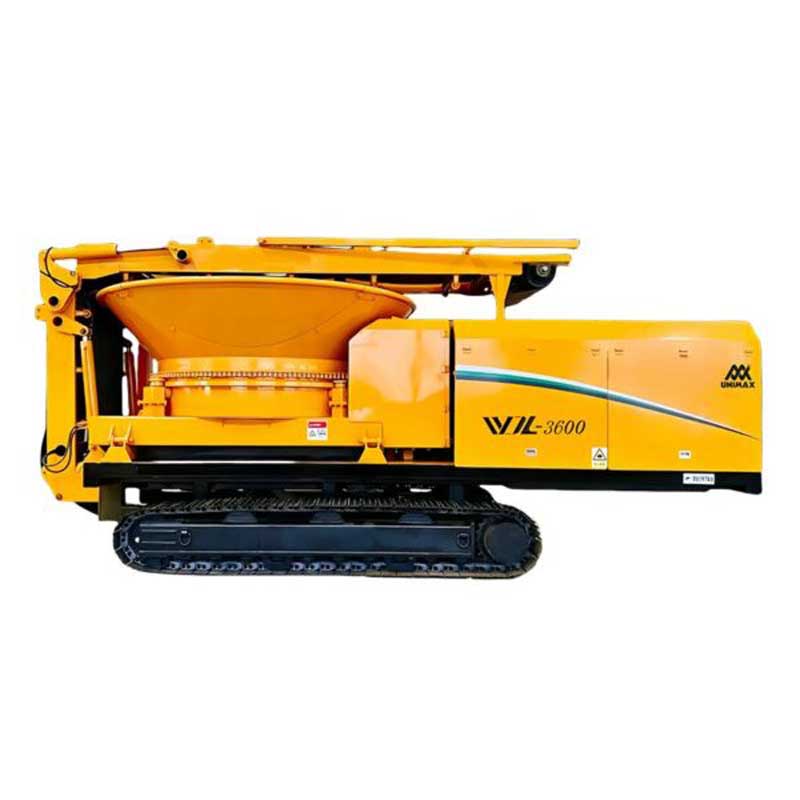

Crawler Type Tub Grinder-WD3600C
1.Flexible Mobility Design
Easily transported with trailer structure, supporting forklift towing and short-distance movement.

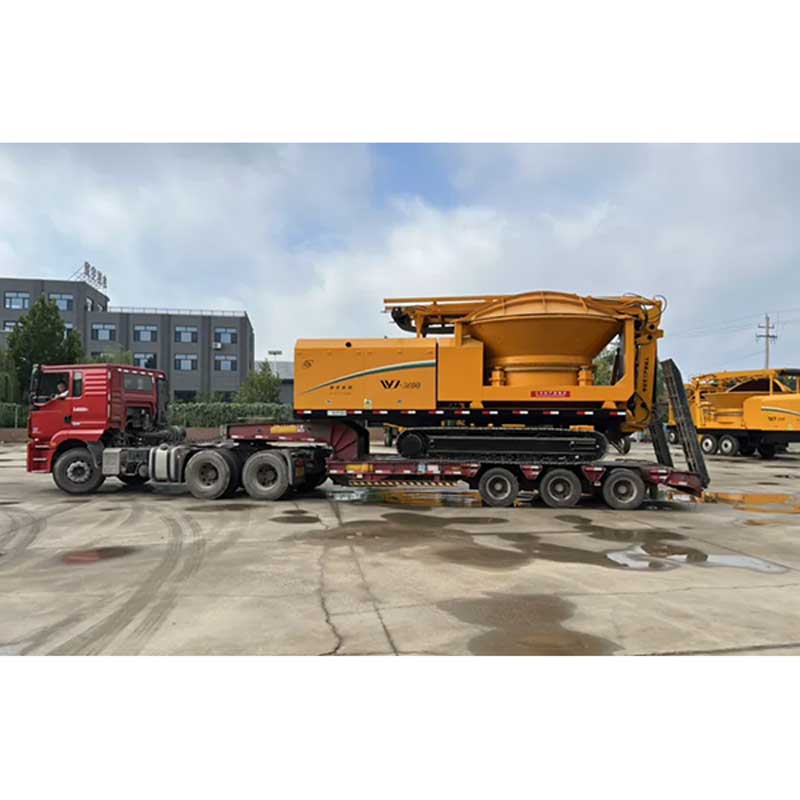

2.Road-Legal Transport
Semi-trailer configuration allows vehicle registration for road transport.
3. Easy Maintenance System
90° tilting workbench enables quick cleaning and fast access for maintenance.
4. High-Capacity Processing
Handles 25–40 tons per hour with powerful 408KW engine.
5. Multi-Material Capability
Knife and hammer assemblies process roots, branches, bark, demolition wood, and biomass.
- Product Advantages
Why Choose Us？
Simple the Best in China
Conveniently access the hammermill and hydraulic components through the tilting tub table, allowing for efficient maintenance and reduced downtime.
Achieve high production with minimal clogging, supported by a continuous undermill discharge conveyor system that ensures smooth and efficient material flow.
high-performance Weichai high-horsepower engines. We also offer the Cummins X12 series as a premium optional configuration to meet diverse global requirements.
Easily switch between tire and crawler configurations for fast mobility, allowing quick access to various job sites.
Minimize maintenance time and extend wear life with reversible hammers and tips, integrated into a patented duplex drum design for enhanced durability and consistent performance.
1.Stable & Reliable
Delivering 400+ units annually, extreme climates—from -30°C Siberian winters to 40°C tropical heat in Malaysia. maximizing ROI for heavy-duty crushing projects in any environment.industrial.
Engineered for unmatched global reliability, our primary wood crushers are proven to maintain peak performance across a staggering 70°C temperature envelope. With over 400 units delivered annually, our equipment demonstrates exceptional thermal resilience, operating continuously in both -30°C Russian winters and 40°C outdoor heat in Malaysia. This extreme climate adaptability is powered by our in-house developed chassis and reinforced hydraulic systems, which prevent cold-induced brittleness and high-heat overheating. Furthermore, the machines feature a robust 30-degree gradeability, enabling efficient navigation through steep, unpaved logging sites. By integrating these verifiable performance statistics, we provide forest-to-fuel operations with a stable, high-output solution that minimizes downtime. Whether facing arctic freezes or tropical humidity, our technology ensures a consistent return on investment through superior engineering and field-tested durability.
2.Intelligent Control
1.Intelligent Hydraulic Feed: Automated synchronization with engine load for peak efficiency.
2.Anti-Stress Control: Eliminates engine stalling, ensuring continuous high-volume operation.
3.Overload Protection: Safeguards core components against mechanical failure in extreme conditions.
The core of our industrial efficiency lies in the Hydraulic Feed System, which is fully integrated with an intelligent feeding system to manage high-volume throughput. This advanced system incorporates Anti-Stress Control and Overload Protection, designed to automatically adjust feed rates based on engine load and material density. By preventing engine stalling and mechanical stress, our technology ensures a 99% uptime rate even during continuous primary crushing operations. Field data indicates that this automated synchronization increases overall work efficiency by compared to traditional manual feed systems. Capable of processing full-sized logs without pre-cutting, the equipment maintains 100% product consistency across varied wood types. Whether operating in -30°C Siberian winters or 40°C tropical heat, the intelligent feed management system protects vital hydraulic components, delivering a stable, automated throughput that maximizes ROI for global biomass projects.”
3.Easy Maintenance
90-degree hydraulic tilting workbench revolutionizes maintenance accessibility. By providing instant, unobstructed access for internal cleaning and component servicing, this design makes routine upkeep faster and easier than ever before.
4.Performance
1.Extra-Large Intake: Ø 3600 mm inlet eliminates the need for log pre-cutting.
2.Versatile Crushing Assembly: knife/hammer roller for diverse materials.
3.Broad Material Compatibility: Effortlessly handles tree roots, logs, and construction templates.
4.High-Volume Output: Consistent production rate of 20-40 tons per hour.
5.Robust Construction
25mm+ reinforced high-tensile manganese steel plates and master-level precision welding. This heavy-duty construction ensures maximum impact resistance and structural integrity during high-intensity primary crushing. By prioritizing material density and expert craftsmanship, we guarantee long-term durability and a higher ROI for demanding global operations.
6.Powerful Engine
standard with high-performance Weichai high-horsepower engines, delivering the surging power required for heavy-duty industrial crushing. We also offer the Cummins X12 series as a premium optional configuration to meet diverse global requirements.
Technical Details
Model | WD3600C |
Raw material | Tree roots， branches， straw, etc |
Machine Size | 7500mmx2600mmx3500mm |
Machine Weight | 21T |
Capacity | 25~40T/hour |
Engine Power (KW) | 408KW |
Inlet size | Ø 3600mm |
Cutting hole size | Ø2350mm |
Feed tray depth | 1370mm |
Spindle working speed | 850rpm/min |
Fuel consumption rate | 20-40L/H |
Fuel tank volume | 310L |
Hydraulic tank volume（L） | 420L |
Cutting roll size | 2200mmx670mm |
Cutter | 10 sets |
Cutter size | 465mmx220mmx20mm |
Cutter screws | 5 pcs/knife |
Number of bed knives | 2 set |
Bed knife size | 1100mmx110mmx30mm |
Bottom cutter screws | 12 pcs |
